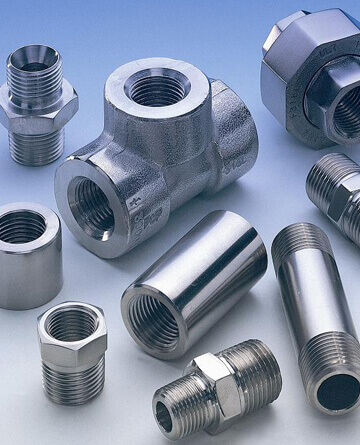

Stainless Steel 304H Forged Fittings Manufacturer

SS 304H Threaded Fittings, ASTM A182 304H SS Forged Fittings, SS 1.4948 Forged Fittings, Stainless Steel 304H Socketweld Fittings, Stainless Steel 304H Forged Fittings, Stainless Steel UNS S30409 Forged Fittings, SS 304H Screwed Fittings Suppliers in Mumbai, India.

Astec Tubes is a worldwide manufacturer of the wide ranges of the SS 304H Forged Fittings.However, we are also supplying the forged fittings of superior quality to both the international as well as commercial clients. The forged fittings are available in many specifications to the clients. Some of the specifications in which the forged fittings are available are surface finish, end finish, dimensions, shape, sizes, and length. In addition to this, the forged fittings are also available in a different cut made specifications as per the expectations of the clients. In the national and international quality standards, the forged fittings are available.

Forged fittings are also the piping components which are having the small diameters which are used to change the direction of flow in the industries. Forged elbows are one of the forged fittings which are available in two types which is 45 degree and 90 degrees. Other than this, there is much another type of forged fittings that are used in both the industrial and commercial applications.

With the presence of the stainless steel alloy which is used to develop the forged fittings, the SS 304H Forged Fittingsis having many properties. However, the alloy is having the presence of the carbon contents which are there in the alloy; the forged fittings are having corrosion resistance, pitting corrosion resistance, and crevice corrosion resistance. Other than this, the forged fittings are having many other properties with the presence of the alloying elements. Some of the properties which are there in the forged fittings are great ductility, good durability, high tensile strength, great toughness, weldability, machinability, and stability in the elevated temperatures.

304H Stainless Steel Forged Cross, 304H SS Forged Equal Tee, SS F304H Full Coupling, ANSI B16.11 SS 304H Threaded Forged Fittings, SS S30409 Threaded Forged Fittings, SS 1.4948 Socketweld Bushing, 304H Stainless Steel Socketweld 90 Deg. Elbow, SS 304h Forged 90 Deg Elbow, ASME SA 182 Stainless Steel 304H Socket-Weld End Cap, Stainless Steel 304H Threaded Plug, SUS 304H Swedge Nipple, SS 304H Industrial Forged Fittings Manufacturer in India.

Moreover, the properties are the reason that the forged fittings are used in the industries. This is the way that the industries are having a smooth flow of work. Other than this, SS 304H Forged Fittings is moving through several material testing. However, some of the tests which are performed are hardness, hydrostatic, micro, macro, positive material identification, ultrasonic, and intergranular corrosion resistance. This is done to ensure the clients that they are provided with the best quality of the products as per their expectations.

Standard : ASTM A182 / ASME SA182

Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799

Size : 1/8" NB to 4" NB

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)

Rating Pressure : Threaded End - 2000 /3000/ 6000 LBS. Socket-weld End - 3000 / 6000/ 9000 LBS.

Stainless Steel 304H Forged Elbow

Stainless Steel 304H Forged Elbow

Stainless Steel 304H Forged Tee

Stainless Steel 304H Forged Tee

Stainless Steel 304H Forged Cross

Stainless Steel 304H Forged Cross

Stainless Steel 304H Forged Coupling

Stainless Steel 304H Forged Coupling

Stainless Steel 304H Forged Plug

Stainless Steel 304H Forged Plug

Stainless Steel 304H Forged Union

Stainless Steel 304H Forged Union

Stainless Steel 304H Forged Pipe Nipples

Stainless Steel 304H Forged Pipe Nipple

Stainless Steel 304H Forged Bushing

Stainless Steel 304H Forged Bushing

Stainless Steel 304H Forged End Cap

Stainless Steel 304H Forged End Cap

Stainless Steel 304H Threaded Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS
SS 304H 1.4948 S30409 SUS 304H
Have you any question or query
General Queries While Buying 304H SS Forged Fittings

ASTM A182 Stainless Steel 304H Threaded Forged Fittings Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 304H 0.10 max 2 max 0.75 max 0.045 max 0.03 max 18 – 20 - 8 – 10.5 -

ANSI B16.11 SS 304H Socketweld Fittings Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000, MPa – 515 Psi – 30000, MPa – 205 40 %

Types of Stainless Steel 304H Socketweld/Screwed/Threaded Fittings

Manufacturing Standards of Stainless Steel 304H Forged Fittings Manufacturers in India & Globally

ASME B16.11 Factory-Made Wrought Socketweld Fittings 304H SS Forged Screwed Elbows, Street Elbow, 304H Stainless Steel Screwed Unequal Tee, 304H Steel Straight Tee, SS 304H Reducing Coupling, Stainless Steel 304H Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, SS 304H Threaded Bushing, Stainless Steel 304H Screwed Caps, Swedge Nipples
MSS-SP-79 standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding 304H SS Barrel Nipples, SS 304H Forged Threaded Boss, SS 304H Forged Hex Head Bull Plugs
MSS-SP-83 Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications SS 304H High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Forged 45° Short Radius Elbow, 304H Stainless Steel caps, 3000LB Socket Weld Cross
MSS-SP-95 Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends Stainless Steel 304H Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, 304H SS Coupling


Stainless Steel 304H Socketweld Fittings Applications

  • Petrochemicals
  • Gas Processing
  • Chemical Equipment
  • Off-Shore Oil Drilling Companies
  • Pharmaceutical Equipment
  • Pulp & Paper Industry
  • Sea Water Equipment
  • Power Generation
