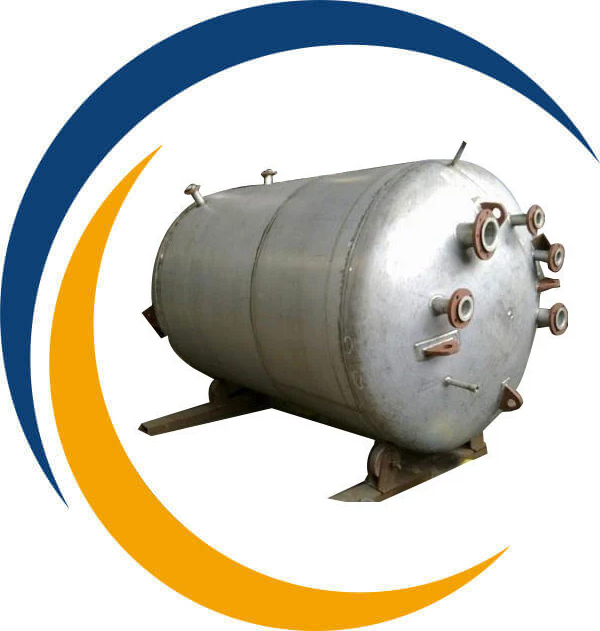

Fully titanium vessels use titanium in all
significant parts, covering the shell, head, and nozzle parts.
Carbon steel can be used to make small parts, such as joint
nut washer flanges. The minimum thickness of the shell for the tank is
2 mm to ensure that when it is placed, a correct seam is formed, weldable, and stiff
enough to be made, transported, and lifted. Not only that, but it also makes a
significant difference in the reduction of prices in general, meaning that this
design saves titanium. These vessels can indeed be used in numerous sectors, such as
chemicals, oil and gas, pharmaceuticals, medicine, and the
military. Their ability to resist corrosion and last long also makes them suitable
for application in all of these areas.
Astec Tubes also offers hastelloy pressure vessels and
jacketed vessels, providing tailored solutions for specialised
applications. Our range of titanium pressure vessels includes
various grades, such as Grade 1, Grade 2, Grade 5, and Grade 7,
with customisable capacities, designs, and finishes. Available in cylindrical,
conical, or custom shapes, these vessels can withstand high pressures according to
industry standards.
Titanium Vessel Specifications
Material : Titanium (Grade 1, Grade 2, Grade 5, etc.)
Standard : ASTM B265, ASTM B338, ASTM B348, ASTM B367, etc.
Type : Pressure Vessel, Jacketed Vessel, Storage Vessel, etc.
Size Range : Custom sizes, typically from 1 liter to several thousand liters
Thickness : 1 mm to 25 mm (depending on pressure and application)
Pressure Rating : Up to 1000 bar (depends on vessel design and application)
Temperature Range : -150°C to 600°C (depends on grade and application)
End Connections : Flanged, threaded, welded, or custom connections
Finish : Polished, brushed, or custom finishes
Corrosion Resistance : Excellent resistance to corrosion and oxidation
Strength : High strength-to-weight ratio
Applications : Chemical processing, aerospace, marine, medical
Customizations : Available for special applications, including lining and coatings
