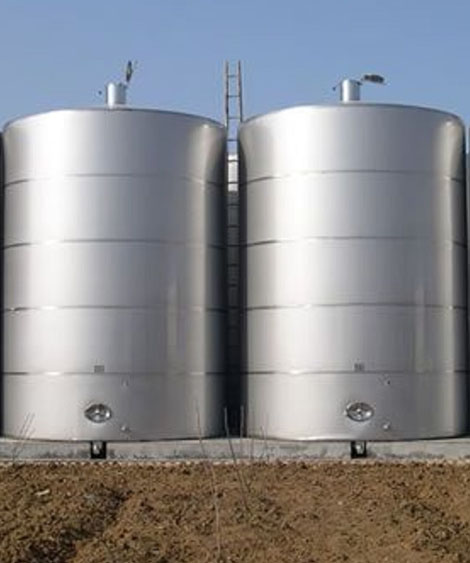

Astech Tube is a prominent Super duplex steel storage tank manufacturer in India that meets international standards. Super duplex steel storage tanks are known for their strength, durability, and resistance to corrosion. Constructed using high-quality material, the tanks are used to store liquids of all kinds, including hazardous and corrosive chemicals. They are a top choice for industries that demand long-lasting and reliable storage solutions. With a commitment to quality and precision, our tanks are crafted to withstand harsh conditions and maintain performance over time.
They have very high resistance to pitting and crevice corrosion, and hence are ideal for handling harsh chemicals. The increased mechanical strength and toughness enable these tanks to resist high pressure and harsh temperatures. Due to a long lifespan, low maintenance requirements, our Super duplex steel industrial storage tanks are designed to perform reliably over time. The welding characteristics further contribute to the tank's structural integrity, and hence it makes a suitable choice for demanding application.
Specification of Super Duplex Steel Storage Tank
Material Grade: Super Duplex Stainless Steel (e.g., UNS S32750 / S32760)
Design Standard: ASME Section VIII Div 1 / API 650 / EN 14015 / PED
Capacity Range: 500 Liters to 200,000 Liters (custom sizes on request)
Tank Type: Vertical / Horizontal / Cylindrical / Conical / Dish End / Jacketed
Wall Thickness: 3 mm to 20 mm (based on size and pressure requirements)
Corrosion Resistance: Excellent resistance to chlorides, pitting, crevice, and stress corrosion cracking
Design Temperature: -50°C to +300°C
Design Pressure: Atmospheric to 25 bar (can be customized)
Weld Type: TIG / MIG / SAW – 100% Radiography or NDT as per standard
Surface Finish: Pickled & Passivated / Mirror Polished / Matte / Electro-Polished (internal and external)
Lining (Optional): PTFE / FRP / Epoxy / Rubber Lining (for highly aggressive chemicals)
Nozzles & Fittings: As per ANSI / DIN / JIS – manholes, drain valves, vents, level indicators, etc.
Mounting Type: Leg-supported / Skid-mounted / Saddle / Flat-bottom / Cone-bottom
