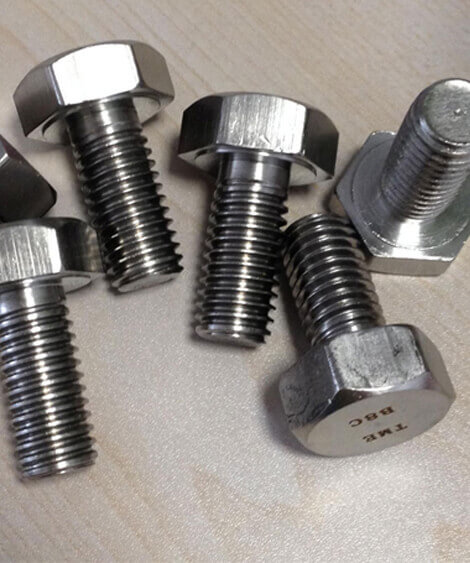

    • Monel 400 / K500 Fasteners

    The Monel 400 and K500 Fasteners contain the maximum amounts of copper and nickel with carbon, iron, silicon, and manganese. It is the most resistant specialty alloy for hydrofluoric acid applications. Although these Monel 400 Fasteners are a great choice for corrosive environments, it has limitations. Monel K500 Fasteners is a tough, nonmagnetic, and heat-resistant metal, which is why it is ideal for use in corrosive environments. In addition, the alloy has very low permeability and excellent dimensional stability. It does need to be worked at slow speeds to maintain its strength.

    Monel 400 Fasteners, Alloy K500 Fasteners, Monel 400 Nuts, Monel 2.4360, 2.4375 Fasteners Supplier, Alloy UNS N04400, N05500 Fastener Manufacturer, ASTM B164 Alloy 400 Fasteners Exporter, Alloy K500 Double Hex Bolt Suppliers in Mumbai, India.

    Monel 400 / K500 Fasteners

    Table Of Content

    What is Monel 400 / K500 Fasteners

    Specification of ASTM B164 Alloy 400 / K500 Fasteners

    Available Types of Alloy 400 / K500 Fasteners

    Monel 400 / K500 Fasteners Equivalent Grades

    ASTM B164 Alloy 400 / K500 Fasteners Chemical Composition

    ASTM B164 Alloy 400 / K500 Fasteners Dimension

    ASTM B164 Alloy 400 / K500 Fasteners Weight Chart

    ASTM B164 Alloy 400 / K500 Fasteners Sizes Chart

    ASTM B164 Alloy 400 / K500 Fasteners Price List In India

    Alloy 400 / K500 Fasteners Mechanical Properties

    We also manufacture Carbon Steel Fasteners, Titanium Gr 2 Fasteners, and Hastelloy C276 Fasteners.

    It is also known for its tensile and yield strengths, which are three times higher. In addition, they are non-magnetic, meaning they are resistant to low temperatures. These alloys UNS N05500 Fasteners can also be precipitation-hardened. This process involves the selective oxidation of aluminum during heating. Monel K500 Screws can be readily formed by conventional commercial procedures. The best method of welding Monel is the gas-tungsten-arc welding process. However, Monel K500 fasteners should be annealed before it is welded. This procedure increases the strength of these fasteners.

    Monel K500 Bolts, Monel 400 Industrial Fasteners, Monel 2.4360 Fasteners, Monel 400 Hex Bolts, ASTM B164 Alloy 400 Screws Manufacturer, Nickel Alloy K500 Stud Bolts Dealer in Mumbai, Nickel Alloy 400 Nuts Exporter, Nickel Alloy 400 Industrial Fasteners Manufacturer in India.

    The DIN 2.4375 Screws are considered to be a good choice for hydrofluoric acid, sulfuric acid, and chloride-based solutions. It also has excellent resistance to seawater. Monel Alloy K500 Fasteners exhibit characteristics like Corrosion resistance in an extensive range of marine and chemical environments, excellent resistance to high-velocity sea water, resistance to a sour-gas environment, excellent mechanical properties from sub-zero temperatures up to about 480 degrees C, etc. These Monel 400 Industrial Fasteners are widely used in a variety of industries, including chemical processing equipment, shipbuilding, marine applications, and domestic appliances.

    ASTM B164 400 / K500 Alloy Fasteners

    Standard : B164 / SB164

    Thickness : 0.6 mm THK to 6.00 mm THK

    Size Range : 1/16” 1/2” & 1.5MM to 38.1MM

    Outer Diameter : 6.00 mm to 60.00 mm

    Available Types of Monel 400 / K500 Fasteners

    Monel 400 / K500 Nuts

    Monel 400 / K500 Nuts

    Monel 400 / K500 Bolts

    Monel 400 / K500 Bolts

    Monel 400 / K500 Screws

    Monel 400 / K500 Screws

    Monel 400 / K500 Washers

    Monel 400 / K500 Washers

    Monel 400 / K500 Stud Bolts

    Monel 400 / K500 Stud Bolts

    Monel 400 / K500 Anchor Bolts

    Monel 400 / K500 Anchor Bolts

    Monel 400 / K500 Fasteners Equivalent Grades

    STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
    Monel 400 2.4360 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe
    Monel K500 2.4375 N05500 - - - - -
    Have you any question or query
    General Queries While Buying Monel 400 / K500 Fasteners
    Send Enquiry

    ASTM B164 400 / K500 Fasteners Chemical Composition

    Grade C Mn Si S Cu Fe Ni
    Monel 400 0.30 max 2.00 max 0.50 max 0.024 max 28.00 – 34.00 2.50 max 63.00 min
    Monel K500 0.25 max 1.5 max 0.5 max 0.010 max 27.00 – 33.00 0.5 – 2 63.00 min

    ASTM B164 Alloy 400 / K500 Fasteners Dimension

    NPS DIA
    bolts (in)    		 Length
    RF    		 Length
    RTJ    		 Number
    of bolts
    1/2 1/2 55 4
    3/4 1/2 65 4
    1 1/2 65 75 4
    1¼ 1/2 70 85 4
    1½ 1/2 70 85 4
    2 5/8 85 95 4
    2½ 5/8 90 100 4
    3 5/8 90 100 4
    3½ 5/8 90 100 8
    4 5/8 90 100 8
    5 3/4 95 110 8
    6 3/4 100 115 8
    8 3/4 110 120 8
    10 7/8 115 125 12
    12 7/8 120 135 12
    14 1 135 145 12
    16 1 135 145 16
    18 1.1/8 145 160 16
    20 1.1/8 160 170 20
    24 1¼ 170 185 20

    ASTM B164 Alloy 400 / K500 Fasteners Weight Chart

    Monel 400 Fasteners Size Monel 400 Finished Hex Monel 400 Heavy Hex Monel 400 Finished Jam Monel 400 Heavy Hex Jam Monel 400 Square Monel 400Heavy Square
    1⁄2“ Nut 3.75 6.54 2.62 4.00 5.78 7.87
    5⁄8“ Nut 7.33 11.9 4.93 6.96 10.8 14.3
    3⁄4“ Nut 11.9 19.3 7.70 11.0 15.4 23.5
    7⁄8“ Nut 19.0 29.7 12.0 16.7 24.5 36.2
    1″ Nut 28.3 42.5 17.6 23.5 36.3 51.5
    11⁄8“ Nut 40.3 59.2 24.7 32.4 52.5 72.4
    11⁄4“ Nut 54.3 78.6 36.1 45.8 70.6 95.5
    13⁄8“ Nut 73.0 102 47.9 59.3 94.5 125.0
    11⁄2“ Nut 94.3 131 60.9 74.8 122 161
    15⁄8“ Nut 162 91.6
    13⁄4“ Nut 151 204 100 114
    17⁄8“ Nut 241 134
    2″ Nut 224 299 140 165
    21⁄4“ Nut 419 227
    21⁄2“ Nut 564 332
    23⁄4“ Nut 738 429
    3″ Nut 950 545
    31⁄4“ Nut 1194 651
    31⁄2“ Nut 1526 851
    33⁄4“ Nut 1812 1005
    4″ Nut 2180 1200

    ASTM B164 Alloy 400 / K500 Fasteners Sizes Chart

    Monel Fasteners Sizes 3/8-16 x 1-1/4 3/8-16 x 1
    1/2-13 x 2 1/4-20 x 1
    1/4-20 x 1 3/8-16 x 1-1/4
    1/4-20 x 3/4 5/8-11 x 2
    1/2-13 x 2 3/8-16 x 1-1/2
    3/8-16 x 1-1/2 3/8-16 x 2
    1/2-13 x 1-1/2 3/8-16 x 1
    1/2-13 x 1-1/2 5/8-11 x 2-1/2
    5/8-11 x 2 5/16-18 x 1
    3/8-16 x 1 1/4-20 x 3/4

    ASTM B164 Alloy 400 / K500 Fasteners Price List In India

    Description Per Unit (INR) Price in USD Price in EURO
    Hex Head Bolt + 1 Flat Washer + 1 Spring Washer Material : Monel Alloy 400 fasteners 764 10.32 8.65
    66 A-nuts/bolts/screws/washer Made Of Monel 400 Stud Bolt W/2 Heavy Hex Nut1-1/4x 5,704 77.02 64.58
    66 A-nuts/bolts/screws/washer Made Of Monel 400 Stud Bolt W/2 Heavy Hex Nut 1/2x9 469 6.33 5.31
    66 A-nuts/bolts/screws/washer Made Of Monel 400 Stud Bolt W/2 Heavy Hex Nut5/8x10 738 9.97 8.36
    66 A-nuts/bolts/screws/washer Made Of Monel 400 Stud Bolt W/2 Heavy Hex Nut1x170m 2,942 39.73 33.31
    66 A-nuts/bolts/screws/washer Made Of Monel 400 Stud Bolt W/2 Heavy Hex Nut 5/8x8 732 9.88 8.29

    Monel 400 / K500 Fasteners Mechanical Properties

    Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
    Monel 400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000 , MPa – 550 Psi – 35,000 , MPa – 240 40 %
    Monel K500 8.44 g/cm3 1350 °C (2460 °F) Psi – 160000 , MPa – 1100 Psi – 115000 , MPa – 790 20 %

    Types of Monel 400 / K500 Fasteners

    Monel 400 Bolts

    Monel Alloy 400 Nuts

    UNS N04400 Fasteners

    Monel® Alloy 400 Washer

    Monel 2.4360 Fasteners

    JIS NW 4400 Hexagonal Washer

    Alloy K500 Heavy Hex Nuts

    Nickel Alloy 400 Screw

    Monel® Alloy 400 Nuts

    Monel K500 Stud Bolts

    Nickel Alloy 400 Hex Bolts

    Alloy UNS N05500 Stud Bolts

    Monel 2.4375 Anchor Bolts

    Alloy K500 Stud

    Monel® Alloy 400 Threaded Rod

    Alloy K500 Full Threaded Stud Bolts

    Alloy 400 Half Threaded Stud Bolts

    Monel N06022 Coupling Nuts

    Monel® Alloy 400 Anchor Bolts

    UNS N04400 Anchor Bolts

    400 Monel Alloy U Bolts

    Monel 2.4360 Washer

    Alloy 400 Dome Washer

    Monel K500 Ogee Washers

    Alloy 400 Socket Head Cap Screws

    Monel K500 Machine Bolts

    Alloy K500 Hex Head Screw

    Monel 400 / K500 Fasteners Applications

    • Petrochemicals
    • Gas Processing
    • Chemical Equipment
    • Off-Shore Oil Drilling Companies
    • Pharmaceutical Equipment
    • Pulp & Paper Industry
    • Sea Water Equipment
    • Power Generation
