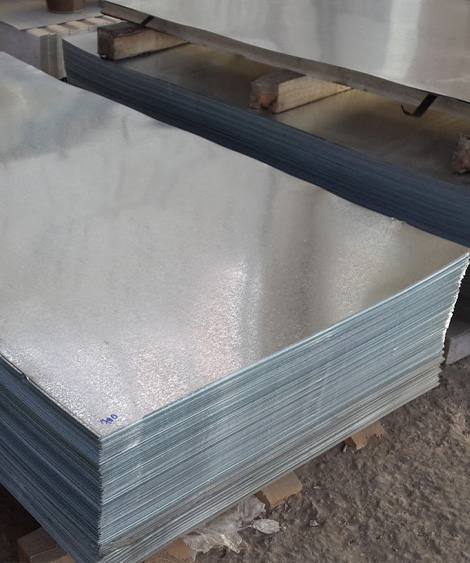

Astec Tubes is a renowned producer, supplier, and stockist of Aluminium Plates in Mumbai, India. We are a well-known name in the industry, providing an exceptional array of Aluminium Plates that are long-lasting and have high tensile strength. We provide them with a variety of finishing standards which are utilized in a variety of industrial and commercial areas.
Our Aluminium Plates are available in many grades such as Aluminium 1100, 6063, 6082, 6061, 2014, 5052, 5083, and 7075 in a variety of forms, lengths, and thicknesses, as well as customized specifications to meet the needs of our clients at the most competitive prices.
Aluminium plates offer excellent workability, medium static strength, high fatigue strength, and excellent corrosion resistance, particularly in maritime environments. It also has a low density and great thermal conductivity that are shared by all aluminium alloys.
These Aluminium Plates are produced in our advanced infrastructure unit and are well-known for their minimal maintenance, dimensional precision, and high tensile strength. Furthermore, to assure flawlessness, our designated quality controllers rigorously examine our product on several aspects./p>
Aluminium Plates are utilised in a variety of applications, including transportation, pressure vessels, cryogenics, towers and drilling rigs, gas/oil pipes, ordnance, and armour plate.

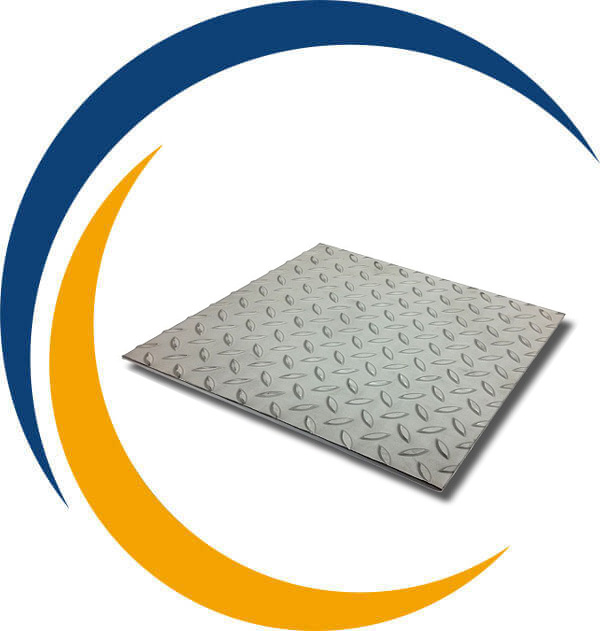

Aluminium Chequered Plate

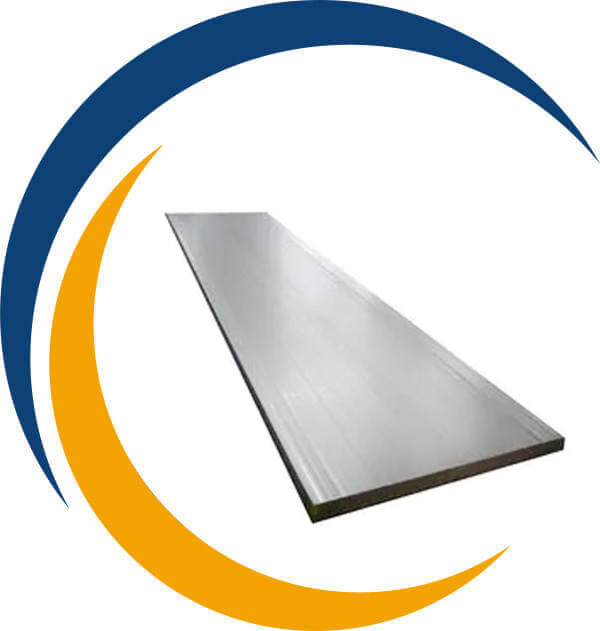

Aluminium Hot Rolled Plate
Aluminium Cold Rolled Plate
|
Grade |
UNS |
USA |
Japan |
France |
ISO |
WNR |
EN |
DIN |
ISO |
BS (OLD) |
|
1100 |
A91100 |
AA1100 |
JIS A1100P |
NF 1100 |
Al 99.0 Cu. |
– |
– |
– |
– |
– |
|
6082 |
A96082 |
AA6082 |
– |
– |
– |
3.2315 |
AW-6082 |
AlMgSi1 |
AlSi1MgMn |
HE30 |
|
5083 |
A95083 |
5083 |
– |
– |
AlMg4,5Mn0,7 |
3.3547 |
AW-AlMg4,5Mn0,7 |
AlMg4,5Mn |
– |
– |
|
6061 |
A96061 |
AA6061 |
– |
– |
– |
3.3211 |
AW-AlMg1SiCu EN AW-6061 |
AlMgSiCu |
AlMg1SiCu |
HE20 |
|
7075 |
A97075 |
7075 |
|
3.4365 |
ENAW-AlZn5.5MgCu EN AW-7075 |
AlZnMgCu1.5 |
AlZn6MgCu |
7075 L95 L96, V95 |
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Others | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 (each) | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 (total) | remainder |
| 5083 | 0.40 max | 0.40 max | 4.0 / 4.90 | 0.40 / 1.0 | 0.10 max | 0.25 max | 0.15 max | 0.05 / 0.25 | 0.05 max | Bal |
| 6061 | 0.7 | 0.4-0.8 | 0.8-1.2 | 0.15 | 0.15-0.4 | 0.25 | 0.15 | 0.15-0.35 | 0.005/0.15 | Remainder |
| 6068 | 0.50 max | 0.7 – 1.3 | 0.06-1.20 | 0.40-1.00 | 0.10 max | 0.20 max | 0.10 max | 0.25 max | 0.05 max | Bal |
| 7075 min | 2.10 | 1.20 | 5.10 | 0.18 | ||||||
| 7075 max | 0.50 | 0.40 | 2.90 | 0.30 | 2.00 | 6.10 | 0.20 | 0.28 | 0.05 |
| Alloy | Temper | UTS(Mpa) | % Elongation | Tensile Strength | Hardness Brinell | Proof Stress | Yield Strength (PSI) | Shear Strength (PSI) | Brinell Hardness | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||||||||
| 1100 | O | 75 | 110 | 20 | 25 | 29 | ||||||
| H12 | 95 | 130 | 5 | 6 | 7 | |||||||
| H14 | 110 | 145 | 3 | 4 | 5 | |||||||
| H16 | 130 | 165 | 2 | 3 | 4 | |||||||
| H18 | 150 | — | 2 | 2 | 3 | |||||||
| 5083 | 12 Min % | 275 – 350 MPa | 75 HB | 125 Min MPa | ||||||||
| 6061 | – | 45,000 | 12 | 40,000 | 31,000 | 95 | ||||||
| 6082 | 8 | 295 | 95 | – | 240 | – | – | |||||
|
7075 T6, T651 |
11 | 83-572 | 73- 503 | 150 | ||||||||
|
7075 T73, T7351 |
13 | 73-503 | 63-434 | NA | ||||||||
Aluminum Cold Forming Plates
Aluminium Plates Dealer
Aluminium Sheet Supplier
Aluminium Plate sizes
Aluminium Plate weight chart
Aluminium Plate Exporter
UNS A93003 Aluminium Plates
Aluminium Plates Price List
Aluminium 1100 Sheet
Aluminium 7050 Plates
Aluminium 1050 Plate
Aluminium 5086 Plate
Aluminium Alloy Plates Supplier
Aluminum Plates Exporter
Aluminum Plates
Aluminium Plates
Aluminium Alloy CR Plates
Aluminium Alloy Plate Stockist
Aluminium Alloy Plate Manufacturer
ASTM B209 Aluminium Plates
6061 Aluminium Plates Stockholder
Aluminium Alloy Plates
Aluminium Hot-Rolled Plate
Aluminium 7050 Plate
ASTM B209 Aluminium Plate
Specification :EN, DIN, JIS, ASTM, BS, ASME, AISI
Standard Specification : ASTM B209 / ASME SB209
Size : 15NB to 150NB IN
Diameter : 3.17mm to 350mm diameter
Length : 100 mm to 3000 mm Long & Above
Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc
Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline
Condition : Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished
