• BS 6323 Grade CFS 8 Carbon Steel Seamless Pipes & Tubes

    Astec Tubes is a leading Carbon Steel Pipe Manufacturers, known for delivering high quality cs pipes & tubes that meet global standards.  Our BS 6323 Grade CFS 8 Carbon Steel Seamless Pipes & Tubes stand out for their exceptional quality and reliability. These tubes are manufactured as per BS specifications and are referred to as carbon steel tubes. The Grade CFS 8 includes components such as Carbon (0.40-0.55%), Silicon (max 0.35%), Manganese (0.50-0.90%), Phosphorous (0.05%), and Sulphur (0.05%). This unique composition gives strength and durability to the tubes. These CFS 8 Carbon Steel Pipes have minimum yield strength of 540 MPa and elongation of 18% to suit the high performance conditions. Our BS 6323 Seamless Tubes are manufactured with perfect chemical composition to cater to the requirements of various sectors.

    BS 6323 Grade CFS 8 Carbon Steel Seamless Tubes, BS 6323 Grade CFS 8 Tubes, BS 6323 Carbon Steel Pipes, BS 6323 Grade CFS 8 Pipes, Carbon Steel Pipe Manufacturers, BS 6323 Carbon Steel Tubes Supplier

    The BS 6323 Grade CFS 8 Tubes are used in industries such as automotive, construction, energy, and engineering. They are commonly used in the production of essential parts such as the hydraulic line, boilers and the structural members. The seamless construction of these pipes ensures a smooth surface finish and there is no possibility of leakage hence suitable for fluid transportation and high-pressure environments. As a trusted BS 6323 Carbon Steel Tubes Supplier, we ensure that we meet the exact needs of our clients by offering them customized products and services that will improve their productivity.

    Each BS 6323 Grade CFS 8 Carbon Steel Seamless Pipe undergoes quality checks and tests to ensure compliance with industry standards. are provided with a Mill Test Certificate as per EN 10204 Type 3.1/3.2, where Type 3.2 includes in-process inspection by third party agencies such as TUV, DNV, BVQS, LLOYDS, EIL etc. These inspections confirm the quality, mechanical properties, and chemical composition of the tubes. Through strict quality control measures, we maintain our reputation as a reliable supplier of BS 6323 Carbon Steel Pipes. Choose us for BS 6323 Grade CFS 8 Carbon Steel Seamless Pipe that are excellent in terms of strength, quality and reliability for every use.

    Property Value
    Standard BS 6323
    Grade CFS 8
    Material Carbon Steel
    Manufacturing Process Seamless Tube
    Surface Finish Cold Drawn, Annealed, Pickled
    Wall Thickness 1mm to 50mm
    Outer Diameter 12mm to 1200mm
    Length 6m to 12m
    Tensile Strength 500 – 600 MPa
    Elongation ≥ 20%
    Hardness ≤ 140 HB
    Corrosion Resistance Good (With Coating or Galvanized)
    Heat Treatment Yes (Annealed, Quenched)

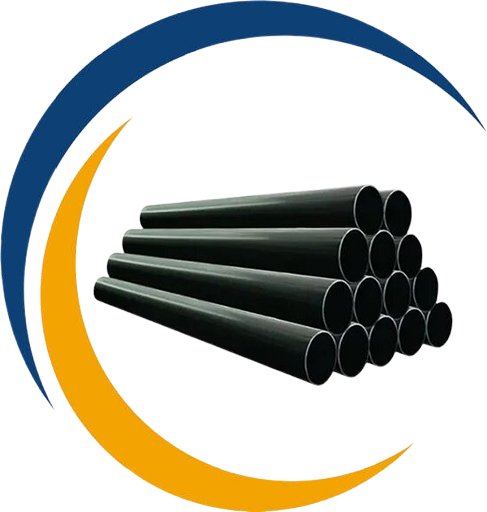

    Carbon Welded Pipe

    Carbon Steel Seamless Pipe

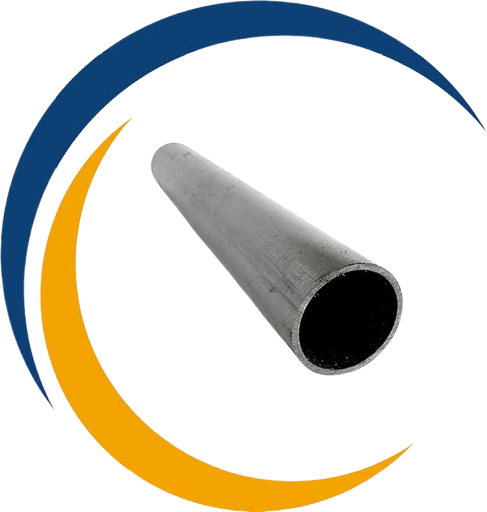

    Carbon Welded Cold Drawn Pipe

    Carbon Welded Cold Drawn Pipe

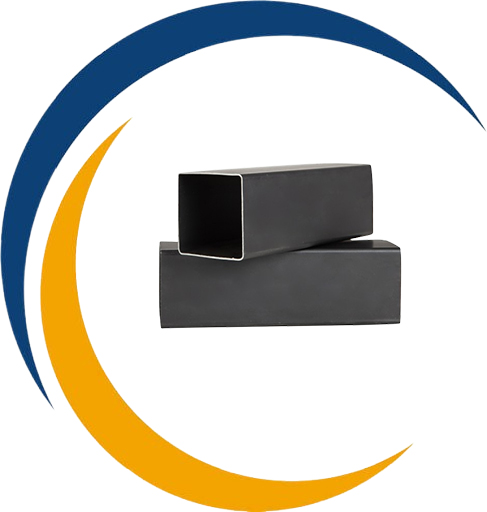

    Carbon Square Pipe

    Carbon Steel Square Pipe

    BS 6323 CFS 8 Carbon Pipes & Tubes Equivalent Grade

    DIN EN BS NFA ASTM ASME
    DIN 17212 Grade Cf45 EN Grade C45G

    BS 6323 CFS 8 Carbon Pipes & Tubes Chemical Composition

    Carbon Silicon Manganese Phosphorous Sulphur Molybdenum Nickel Chromium Copper Others
    0.40-0.55 max 0.35 0.50-0.90 0.05 0.05

    BS 6323 CFS 8 Carbon Pipes & Tubes Dimension Chart

    Outer Diameter (OD) Wall Thickness (WT) Length
    12mm – 25mm 1mm – 2mm 6m to 12m
    25mm – 50mm 2mm – 3mm 6m to 12m
    50mm – 100mm 3mm – 5mm 6m to 12m
    100mm – 150mm 5mm – 6mm 6m to 12m
    150mm – 250mm 6mm – 8mm 6m to 12m
    250mm – 300mm 8mm – 10mm 6m to 12m
    300mm – 500mm 10mm – 12mm 6m to 12m
    500mm – 800mm 12mm – 20mm 6m to 12m
    800mm – 1200mm 20mm – 50mm 6m to 12m
    Have you any question or query
    General Queries While Buying BS 6323 CFS 8 Carbon Pipes & Tubes

    Types of BS 6323 CFS 8 Carbon Pipes & Tubes

    BS 6323 CFS 8 Carbon Pipes & Tubes Applications

    • Industrial applications
    • Food and beverage processing
    • Construction
    • Medical and pharmaceutical uses
    • Mining
    • Automotive and aerospace sectors
    • Plumbing and water systems
    • Oil and Gas Industry
