• Incoloy 825 Forged Fittings Manufacturer

    • Home
    • Incoloy 825 Forged Fittings

    Astec Tubes is a prominent manufacturer and supplier of the good quality of Incoloy 825 Forged Fittings. We are good at supplying the wide ranges of the forged fittings to both the commercial and international clients. However, there are many specifications in which the forged fittings are available. Some of the specifications in which the forged fittings are available are surface finish, end finish, dimensions, shape, sizes, toughness, and length. On the other hand, the forged fittings are also available in the cut made specifications of the clients. The forged fittings are available in the national and international quality standards.

    ASTM B564 825 Inconel Forged Fittings, Incoloy UNS N08825 Forged Fittings, Incoloy® 825 Socketweld Fittings, Incoloy 2.4858 Forged Fittings, Incoloy Alloy 825 Threaded Fittings, Alloy 825 Forged Fittings, Incoloy 825 Forged Fittings, Incoloy 825 Screwed Fittings Suppliers in Mumbai, India.

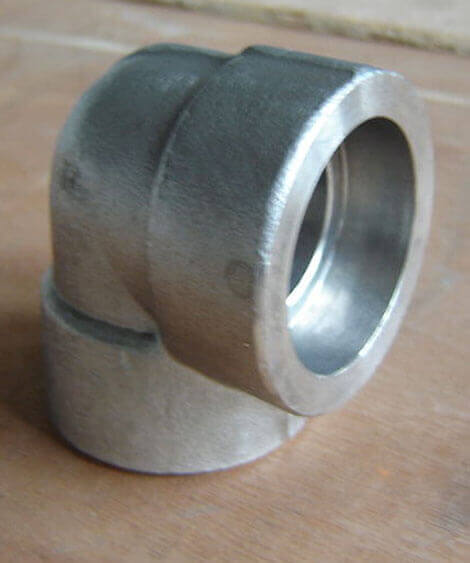

    Incoloy Alloy 825 Forged Fittings

    Table Of Content

    What is Incoloy 825 Forged Fittings

    Specification of ASTM B564 825 Incoloy Forged Fittings

    ANSI B16.11 Available Types of Alloy 825 Forged Fittings

    ASTM B564 Alloy 825 Threaded Fittings Equivalent Grades

    Incoloy Alloy 825 Threaded Fittings Chemical Composition

    Incoloy 825 Socketweld Fittings Mechanical Properties

    Types of Incoloy 825 Socketweld Fittings

    Manufacturing Standards of Incoloy 825 Forged Fittings

    Incoloy 825 Socketweld Fittings Applications

    Incoloy 825 is the best nickel, chromium, iron-based alloy which is used in the development of the forged fittings. However, the alloy is also having the additions of the molybdenum, copper, and titanium. On the other hand, there is the best chemical composition of the designed alloy. The alloy is having exceptional resistance to all the high temperatures destroying elements in the corrosive environments.

    Forged fittings are the type of pipe fittings that are used in the industries because of the small diameter that they are having. However, the forged fittings are available in many types such as couplings, forged elbows, forged plugs, and many others. On the other hand, the fittings are developed with the help of the forging process which is there. Apart from this, the forged fittings are used in both commercial and industrial applications. This is the way that the industries are having smooth functioning of the application and the workflow.

    Incoloy N08825 Threaded Forged Fittings, NCF 825 Swedge Nipple, 825 Inconel Socketweld 90 Deg. Elbow, ASME SB 564 Alloy 825 Socket-Weld End Cap, Incoloy Alloy 2.4858 Socketweld Bushing, ANSI B16.11 Incoloy 825 Threaded Forged Fittings, Incoloy® 825 Threaded Plug, 825 Incoloy Forged Cross, Incoloy Alloy 825 Full Coupling, Inconel 825 Forged 90 Deg Elbow, 825 Incoloy Forged Equal Tee, Incoloy Alloy 825 Industrial Forged Fittings Manufacturer in India.

    Incoloy 825 Forged Fittings is having many properties with the help of the alloying elements which are present in the forged fittings. Some of the properties which are there in the forged fittings are corrosion resistance, pitting corrosion resistance, and crevice corrosion resistance. These are the properties that are there with the presence of the nickel alloy. In addition to this, there are many other properties that are there with the forged fittings related to other elements of the alloy. Some of the properties which are there with the forged fittings are great ductility, durability, tensile strength, high toughness, and stability in the elevated temperatures.

    ASTM B564 825 Incoloy Alloy Forged Fittings

    Standard : ASTM B564 / ASME SB564

    Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799

    Size : 1/8" NB to 4" NB

    Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)

    Rating Pressure : Threaded End - 2000 /3000/ 6000 LBS. Socket-weld End - 3000 / 6000/ 9000 LBS.

    Available Types of Incoloy 825 Forged Fittings

    Incoloy 825 Forged Elbow

    Incoloy 825 Forged Elbow

    Incoloy 825 Forged Tee

    Incoloy 825 Forged Tee

    Incoloy 825 Forged Cross

    Incoloy 825 Forged Cross

    Incoloy 825 Forged Coupling

    Incoloy 825 Forged Coupling

    Incoloy 825 Forged Plug

    Incoloy 825 Forged Plug

    Incoloy 825 Forged Union

    Incoloy 825 Forged Union

    Incoloy 825 Forged Pipe Nipples

    Incoloy 825 Forged Pipe Nipple

    Incoloy 825 Forged Bushing

    Incoloy 825 Forged Bushing

    Incoloy 825 Forged End Cap

    Incoloy 825 Forged End Cap

    Incoloy 825 Threaded Fittings Equivalent Grades

    STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
    Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo XH38BT
    Have you any question or query
    General Queries While Buying 825 Incoloy Forged Fittings
    Send Enquiry

    ASTM B564 Incoloy 825 Threaded Forged Fittings Chemical Composition

    Grade C Mn Si S Cu Fe Ni Cr Al Ti
    825 0.05 max 1.00 max 0.5 max 0.03 max 1.50 – 3.00 22.00 min 38.00 – 46.00 19.50 – 23.50 0.02 max 0.06 – 1.20

    ANSI B16.11 Incoloy 825 Socketweld Fittings Mechanical Properties

    Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
    825 8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000, MPa – 550 Psi – 32,000, MPa – 220 30 %

    Types of Incoloy 825 Socketweld/Screwed/Threaded Fittings

    UNS N08825 Socketweld 45 Deg Elbow

    Incoloy 825 Screwed Equal Elbow

    Inconel 825 Equal Forged Tee

    Incoloy Alloy 2.4858 Threaded Cross

    ANSI B16.11 Incoloy Alloy 825 Socket-Weld Elbow

    Incoloy 825 Pipe Nipples Exporter

    Incoloy 2.4858 Forged Fittings Dealer

    Incoloy N08825 Forged Fittings

    UNS N08825 Reducing Coupling

    Inconel Alloy 2.4858 Half Coupling

    Incoloy 825 Forged Pipe Cap Supplier

    NCF 825 Socketweld End Cap

    UNS N08825 Threaded Fittings

    Incoloy 825 Square Plug

    ASME SB 564 Incoloy 825 Socketweld Plug

    2.4858 Threaded Fittings

    UNS N08825 Forged Threaded Fittings

    Incoloy 825 Socket Weld Cap Manufacturer

    Incoloy 825 Pipe Union

    Inconel Alloy 825 90 deg. Elbow Stockist

    NCF 825 Forged Fittings Stockholder

    ASTM B564 Incoloy 825 Socket Weld Fittings

    Incoloy 825 Reducing Cross Fittings

    Alloy 825 Incoloy Forged Fittings

    Manufacturing Standards of Incoloy 825 Forged Fittings Manufacturers in India & Globally

    ASME B16.11 Factory-Made Wrought Socketweld Fittings 825 Incoloy Alloy Forged Screwed Elbows, Street Elbow, 825 Incoloy Screwed Unequal Tee, 825 Alloy Straight Tee, Incoloy Alloy 825 Reducing Coupling, Incoloy 825 Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, Incoloy Alloy 825 Threaded Bushing, Incoloy 825 Screwed Caps, Swedge Nipples
    MSS-SP-79 standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding 825 Incoloy Alloy Barrel Nipples, Incoloy Alloy 825 Forged Threaded Boss, Alloy 825 Forged Hex Head Bull Plugs
    MSS-SP-83 Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications Incoloy Alloy 825 High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Alloy Forged 45° Short Radius Elbow, 825 Incoloy caps, 3000LB Socket Weld Cross
    MSS-SP-95 Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends Incoloy 825 Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, 825 Incoloy Alloy Coupling


    Incoloy 825 Socketweld Fittings Applications

    • Petrochemicals
    • Gas Processing
    • Chemical Equipment
    • Off-Shore Oil Drilling Companies
    • Pharmaceutical Equipment
    • Pulp & Paper Industry
    • Sea Water Equipment
    • Power Generation
