• Hastelloy C276 Forged Fittings Manufacturer

    Astec Tubes is the prominent manufacturer of the wide ranges of Hastelloy C276 Forged Fittings. However, we are also supplying forged fittings to all commercial and international clients. Other than this, the forged fittings are available in various specifications. Some of the specifications in which the forged fittings are available are surface finish, end finish, dimensions, shapes, sizes, and length. This is the way that they are used in the industries. On the other hand, the forged fittings are also available in the cut made specifications of the clients as per their expectations. Forged fittings are provided in both the national and international quality standards.

    Hastelloy N10276 Forged Fittings, Hastelloy 2.4819 Forged Fittings, Alloy C276 Forged Fittings, ASTM B564 C276 Hastelloy® Forged Fittings, Hastelloy Alloy C276 Socketweld Fittings, Hastelloy C276 Forged Fittings, Hastelloy C276 Threaded Fittings, Hastelloy C276 Screwed Fittings Suppliers in Mumbai, India.

    Forged fittings are available in the two main types of pipe fittings: socket weld forged fittings and threaded forged fittings. On the other hand, the same as the pipe fittings, the forged fittings are also available in many types. The only difference which is there in the pipe fittings and forged fittings is the size of the diameter that it is having. In the same way, the forged fittings are mostly used in the plumbing system. Some of the types of forged fittings that are used in the industries are couplings, plugs, elbows, reducers, tees, and others.

    Other than this, the Hastelloy c276 Forged Fittings is available in many properties that are there with the presence of the hastelloy contents. Some of the properties which are there with the presence of the carbon content are corrosion resistance, crevice corrosion resistance, and pitting corrosion resistance. In addition to this, there are many other properties that are there with the presence of other alloying elements. Some of the properties which are there with the forged fittings are great ductility, durability, high tensile strength, weldability, machinability, and stability in the elevated temperatures.

    ANSI B16.11 Hastelloy C276 Threaded Forged Fittings, C276 Hastelloy Socketweld 90 Deg. Elbow, ASME SB 564 Hastelloy C276 Socket-Weld End Cap, Hastelloy C276 Threaded Plug, Hastelloy C276 Forged 90 Deg Elbow, Alloy C276 Full Coupling, Hastelloy Alloy C276 Threaded Forged Fittings, Hastelloy 2.4819 Socketweld Bushing, C276 Hastelloy® Forged Cross, C276 Hastelloy Forged Equal Tee, Hastelloy C276 Swedge Nipple, Hastelloy Alloy C276 Industrial Forged Fittings Manufacturer in India.

    Moreover, these properties are the reason that the industries are using the type of forged fittings. However, oil and gas, pulp and paper, Petrochemicals, Pharmaceutical, shipping, and others are some of the industries which are using the wide ranges of forged fittings. This is the way that industries are having a smooth flow of work among all the piping systems in industrial applications.

    Standard : ASTM B564 / ASME SB564

    Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799

    Size : 1/8" NB to 4" NB

    Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)

    Rating Pressure : Threaded End - 2000 /3000/ 6000 LBS. Socket-weld End - 3000 / 6000/ 9000 LBS.

    Hastelloy C276 Forged Elbow

    Hastelloy C276 Forged Elbow

    Hastelloy C276 Forged Tee

    Hastelloy C276 Forged Tee

    Hastelloy C276 Forged Cross

    Hastelloy C276 Forged Cross

    Hastelloy C276 Forged Coupling

    Hastelloy C276 Forged Coupling

    Hastelloy C276 Forged Plug

    Hastelloy C276 Forged Plug

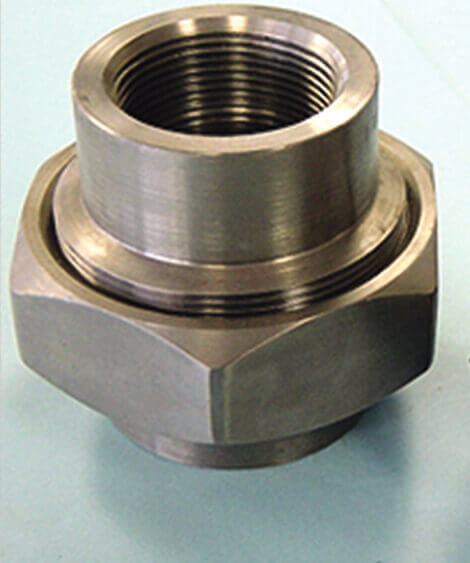

    Hastelloy C276 Forged Union

    Hastelloy C276 Forged Union

    Hastelloy C276 Forged Pipe Nipples

    Hastelloy C276 Forged Pipe Nipple

    Hastelloy C276 Forged Bushing

    Hastelloy C276 Forged Bushing

    Hastelloy C276 Forged End Cap

    Hastelloy C276 Forged End Cap

    Hastelloy C276 Threaded Fittings Equivalent Grades

    STANDARD WERKSTOFF NR. UNS JIS GOST EN OR
    Hastelloy C276 2.4819 N10276 NW 0276 ХН65МВУ NiMo16Cr15W ЭП760
    Have you any question or query
    General Queries While Buying C276 Hastelloy Forged Fittings

    ASTM B564 Hastelloy C276 Threaded Forged Fittings Chemical Composition

    Grade C Mn Si S Co Ni Cr Fe Mo P
    C276 0.010 max 1.00 max 0.08 max 0.03 max 2.50 max 50.99 min* 14.50 – 16.50 4.00 – 7.00 15.00 – 17.00 0.04 max

    ANSI B16.11 Hastelloy C276 Socketweld Fittings Mechanical Properties

    Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
    Hastelloy C276 8.89 g/cm3 1370 °C (2500 °F) Psi – 1,15,000, MPa – 790 Psi – 52,000, MPa – 355 40 %

    Types of Hastelloy C276 Socketweld/Screwed/Threaded Fittings

    Manufacturing Standards of Hastelloy C276 Forged Fittings Manufacturers in India & Globally

    ASME B16.11 Factory-Made Wrought Socketweld Fittings C276 Hastelloy Forged Screwed Elbows, Street Elbow, C276 Hastelloy Screwed Unequal Tee, C276 Steel Straight Tee, Hastelloy C276 Reducing Coupling, Hastelloy C276 Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, Hastelloy C276 Threaded Bushing, Hastelloy C276 Screwed Caps, Swedge Nipples
    MSS-SP-79 standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding C276 Hastelloy Barrel Nipples, Hastelloy C276 Forged Threaded Boss, Hastelloy C276 Forged Hex Head Bull Plugs
    MSS-SP-83 Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications Hastelloy C276 High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Forged 45° Short Radius Elbow, C276 Hastelloy caps, 3000LB Socket Weld Cross
    MSS-SP-95 Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends Hastelloy C276 Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, C276 Hastelloy Coupling


    Hastelloy Alloy C276 Socketweld Fittings Applications

    • Petrochemicals
    • Gas Processing
    • Chemical Equipment
    • Off-Shore Oil Drilling Companies
    • Pharmaceutical Equipment
    • Pulp & Paper Industry
    • Sea Water Equipment
    • Power Generation
