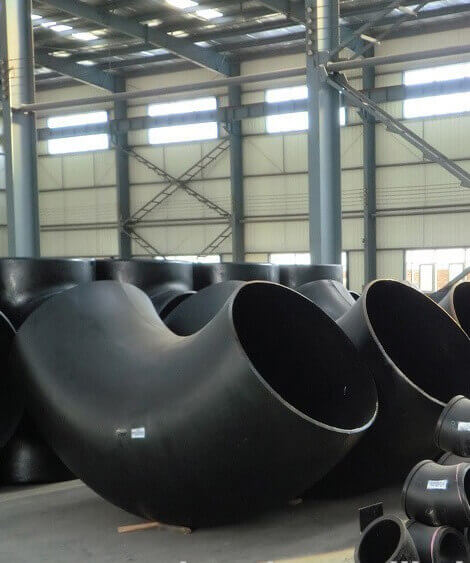

• Carbon Steel WPHY 42 Pipe Fittings Manufacturer

    Astec Tubes is a legally certified manufacturer, supplier, and exporter of the commendable quality of extensive ranges of Carbon Steel WPHY 42 Pipe Fittings. These pipe fittings are developed and distributed to our esteem patrons in various specifications and dimensions as per the clients’ demands. These fittings are manufactured using premium quality of alloy and as per set manufacturing norms and industry standards like ASME, API, and ASTM, etc. These fittings today have become an ideal selection for the high temperature and high-pressure applications. It can be availed from us at various types like fabricated, welded and seamless. Pipe fittings are the mechanical equipment that is made of various metals and in various grades for different purposes and functions. Primarily these pipe fittings are used for joining the multiple pipes of different or same sizes. The pipe fittings help in regulating the smooth flow of the material like liquid or gas. It can be availed in various metals like copper, stainless steel, brass, iron, etc. The types of pipe fittings that provide are WPHY 42 elbows, reducing elbows, 45 deg elbows, tee fittings, reducers, stub ends, end caps, cross fittings, reducing cross fittings, 180 deg SR return bends, pipe bends or piggable bends, long radius bends, couplings, pipe nipples, plate cut rings, 180 deg LR return bend, plate circles, lateral, etc.

    Carbon Steel WPHY 42 Buttweld Fittings, WPHY 42 Pipe Fittings, ASTM A860 WPHY 42 Carbon Steel Pipe Fittings, High Yield CS WPHY 42 Pipe Fitting, Carbon Steel WPHY 42 Butt weld Reducer, Carbon Steel WPHY 42 Buttweld Fittings Suppliers in Mumbai, India.

    High Yield Carbon Steel WPHY 42 Butt weld Fittings today is found used in many industrial applications because of many good properties. The properties are high tensile strength, perfect dimensional accuracy, rugged construction, sturdy construction, pitting & general corrosion resistance, high toughness, long functionality, easy to machine, weld, form, etc. The applications where it is found are industrial boilers, fossil fuel power plants, nuclear power plants, marine applications, condensers, pulp & paper industry, heat exchangers, shipbuilding, refiners, seawater equipment, petrochemicals, pharmaceuticals, etc.

    High Yield WPHY 42 Eccentric Reducer, ASME SA860 CS WPHY 42 Pipe Cap, Carbon Steel WPHY 42 Stub End, High Yield WPHY 42 Concentric Reducer, ANSI B16.9 Carbon Steel WPHY 42 Welded Pipe Fittings, High Yield CS WPHY 42 Equal Tee, High Yield WPHY 42 Pipe Bend, Carbon Steel WPHY 42 Buttweld 90 Deg. Elbow, High Yield CS WPHY 42 Pipe Elbow, High Yield CS WPHY 42 Seamless Butt weld Fittings, High Yield WPHY 42 Buttweld Fitting, Carbon Steel WPHY 42 Industrial Pipe Fittings Manufacturer in India.

    WPHY 42 Pipe Fittings are thoroughly quality checked to make sure that only superior quality of the same is supplied and exported to our esteem patrons. The tests done are IGC tests, radiography tests, mechanical strength checking, chemical composition testing, etc. The documents copies we provide are commercial invoice, packaging list, heat treatment chart, QAP, MTC, etc.

    Standard : ASTM A860 / ASME SA860

    Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

    Size : 1/8” NB TO 48” NB.

    Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

    Type : Seamless / Welded / Fabricated

    Bending Radius :R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

    Carbon Steel WPHY 42 Butt weld Elbow

    Carbon Steel WPHY 42 Butt weld Elbow

    Carbon Steel WPHY 42 Butt weld Tee

    Carbon Steel WPHY 42 Butt weld Tee

    Carbon Steel WPHY 42 Butt weld Cross

    Carbon Steel WPHY 42 Butt weld Cross

    Carbon Steel WPHY 42 Butt weld Reducer

    Carbon Steel WPHY 42 Butt weld Reducer

    Carbon Steel WPHY 42 Butt weld Stub End

    Carbon Steel WPHY 42 Butt weld Stub End

    Carbon Steel WPHY 42 Butt weld Pipe Bend

    Carbon Steel WPHY 42 Butt weld Pipe Bend

    Have you any question or query
    General Queries While Buying Carbon Steel WPHY 42 Pipe Fittings

    ASTM A860 High Yield Carbon Steel WPHY 42 Butt weld Pipe Fittings Chemical Composition

    Grade  Mn P S Si Ni Cr Mo Cu Ti V Cb Al
    WPHY 42 0.20 1.00-1.45 0.03 0.01 0.15-0.40 0.50 0.30 0.25 0.35 0.05 0.10 0.04

    ANSI B16.9 Carbon Steel WPHY 42 Buttweld Fittigns Mechanical Properties

    Element  Tensile Strength Yield Strength (0.2%Offset) Elongation
    WPHY42 515-690 415 28 %

    Types of Carbon Steel WPHY 42 Buttweld Fittings

    Manufacturing Standards of Carbon Steel WPHY 42 Pipe Fittings Manufacturers in India & Globally

    ASME B16.9 Factory-Made Wrought Buttwelding Fittings WPHY 42 Long Radius Elbows, Long Radius Reducing Elbows, High Yield WPHY 42 Long Radius Returns, High Yield CS WPHY 42 Steel Short Radius Elbows, Carbon Steel WPHY 42 Short Radius 180-deg Rerurns, Carbon Steel WPHY 42 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Carbon Steel WPHY 42 Lap Joint Stub Ends, Carbon Steel WPHY 42 Caps, Reducers
    ASME B16.28 High Yield WPHY 42 Short Radius Elbows, Carbon Steel WPHY 42 Short Radius 180-deg Returns
    MSS SP43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications High Yield Carbon Steel WPHY 42 Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, WPHY 42 Carbon Steel WPHY 42 caps, long radius 180 Degree returns, concentric reducers, eccentric reducers
    Mss SP75 High Yield Carbon Steel WPHY 42 Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, WPHY 42 reducers


    High Yield Carbon Steel WPHY 42 Buttweld Fittings Applications

    • Petrochemicals
    • Gas Processing
    • Chemical Equipment
    • Off-Shore Oil Drilling Companies
    • Pharmaceutical Equipment
    • Pulp & Paper Industry
    • Sea Water Equipment
    • Power Generation
