    What are ASTM A53 GR B Carbon Steel Pipes?
    ASTM A53 (ASME SA53) carbon steel pipe is a standard covering the seamless and welded black and hot-dip galvanized steel pipe in NPS 1/8′′ to NPS 26. A53 is designed for pressure and mechanical applications and is suitable for ordinary usage in steam, water, gas, and airlines. It is ideal for welding and forming operations requiring coiling, bending, and flanging, according to other requirements. ASTM A53 Grade B ERW Pipe used in the Oil and Gas and other process industries.

    ASTM A53 Grade B Seamless Pipes offer high tensile strength, good dimensional accuracy, fine surface finishes, rugged construction, holds high heat, toughness, non-corrosive, easy to use, formability, etc. Also, the product can resist stress corrosion cracking, crevice corrosion, general corrosion, general corrosion, and pitting. ASTM A53 Gr B ERW pipe applications are diverse and involve requirements for high-pressure applications such as oil & gas transport, hydrocarbon industries & refineries, and oil & gas exploration & extraction. ASTM A53 Carbon Steel Pipes and ASTM A106 GR B Carbon Steel Pipes are one of the most popular grade.

    ASTM A53 Gr.B Carbon Steel Pipe, ASTM A53 Carbon Steel Grade B ERW Pipes, Carbon Steel GR.B Seamless Pipe, ASTM A53 GR B Pipes, ASTM A53 Grade B Carbon Steel Seamless Pipe, Grade B Carbon Steel Welded Pipe Suppliers in Mumbai, India.

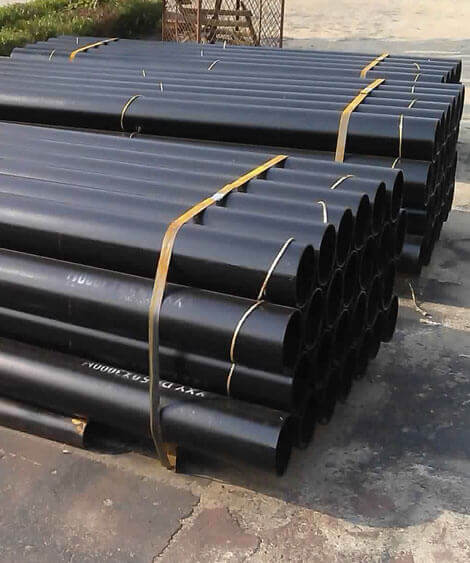

    Carbon Steel A53 GR B Pipes

    Table Of Content

    What is Carbon Steel A53 Grade B Pipes

    Specification of ASTM A53 Grade B Carbon Steel Pipes

    Available Types of Carbon Steel GR B Pipes

    ASTM A53 Grade B Pipes Chemical Composition

    ASTM A53 GR.B Seamless Pipes Mechanical Properties

    Schedule Chart of ASTM A53 GR.B Seamless Pipes

    ASTM A53 GR.B Seamless Pipes Pressure Rating

    ASTM A53 GR.B Seamless Pipes Size Chart

    Price List of ASTM A53 GR.B Seamless Pipes

    Weight Chart of ASTM A53 GR.B Seamless Pipes

    ASTM A53 GR.B Seamless Pipes Tolerance

    Essentially, A53 Gr B Welded Pipe applications are intended for pressure systems and mechanical applications. A53 Seamless Pipes are commonly used in automotive, boilers, bearings, air and hydraulic cylinders, etc. They have varying pressure ratings, depending on the type. This includes a minimum yield strength of 240 MPa.

    Some ASTM A53 GR B Carbon Steel pipes and ASTM A333 GR 6 Carbon Steel Pipes are made with a special process. These pipes are welded from strips of the same grade of metal. The weld is then treated to prevent any leftover un-tempered martensite. These pipes can have beveled or plain ends and threaded ends. Moreover, these pipes are available in custom lengths.

    As a result of their superior resistance to corrosion at high temperatures, these pipes are highly versatile. The carbon content of these pipes enhances their toughness. They are also more resistant to oxidation.

    ASTM A53 Grade B Pipes Stockist, ASTM A53 Gr. B Hot-Dipped Pipes, ASTM A53 Grade B Carbon Steel Black Pipes, ASTM A53 Carbon Steel GR B Pipes, Carbon Steel GR.B ERW Pipes, Carbon Steel A53 Gr. B Zinc-Coated Pipe, ASME SA 53 GR B Seamless Pipe, Carbon Steel GR.B Industrial Pipes Manufacturer in India.

    A53 Grade B is the most widely used type of A53. It is also known as mild carbon steel. These pipes are useful for a variety of construction and welding applications. They are often used in low-pressure plumbing and are not intended for high-pressure or temperature services. They are available in a number of sizes, ranging from a half-inch to a full inch. They can be used in various applications, such as water supply, irrigation, and drainage. The material is primarily iron. It has a wide range of tensile strengths, as well as ductility.

    Astec Tubes are a leading manufacturer, supplier, stockiest, and exporter of ASTM A53 Grade B Carbon Steel Pipes in Mumbai, India, manufactured in accordance with global quality standards. We manufacture these pipes using high-quality raw materials and advanced technology.

    Our ASTM A53 Grade B Carbon Steel Pipes are available in various sizes, specifications, dimensions, and thicknesses. They can also be customized according to the requirements of our client’s at the most reasonable prices. To ensure the quality of pipes, we offer various test certificates along with our products, including Mill Test Certificates, EN 10204 3.1, Chemical /Mechanical Reports, etc.

    What is ASTM A53 GR B Carbon Steel Pipe?

    ASTM A53 GR B is a carbon steel alloy which is used as structural steel or for low-pressure plumbing. ASTM A53 GR B CS Pipe is composed of manganese, phosphorus, sulfur, & copper as well as carbon.


    What are the uses of ASTM A53 GR B Carbon Steel Pipes?

    Grade B Carbon Steel Welded Pipes are commonly used for the transmission of water, oil, air, & steam. They are also used for mechanical, structural, & pressure applications as well as for ordinary uses in steam, water, gas, & airlines.


    What is the maximum pressure rating for ASTM A53 GR B Carbon Steel Pipes?

    The maximum pressure rating for ASTM A53 GR B Carbon Steel Pipes is 795 psi (55 bar) at -20°F to 650°F (-29°C to 343°C). This rating is based on the ability of pipes to withstand internal pressure without leaking or failing.

    ASTM A53 GR B Carbon Steel Pipes

    Specifications: ASTM A53 / ASME SA53

    Size : Nominal Pipe Size 1/2" to 48 " O.D.

    Thickness : SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS, DIN, JIS standard thickness

    Type : Seamless / ERW / Welded / Fabricated / CDW

    Form : Round Pipes, Square Pipes, Rectangular Pipes

    Length : Single Random, Double Random & Required Length

    End : Plain End, Beveled End, Treaded

    Available Types of Carbon Steel A53 Grade B Pipes

    Carbon Steel A53 Grade B Seamless Pipes

    Carbon Steel A53 Gr B Seamless Pipe

    Carbon Steel A53 Gr B Welded Pipe

    Carbon Steel A53 Gr B Welded Pipe

    ASTM A53 Grade B Black Pipe

    ASTM A53 Grade B Black Pipe

    Have you any question or query
    General Queries While Buying ASTM A53 Gr B Pipes
    Send Enquiry

    ASTM A53 GR.B Carbon Steel Pipes Chemical Composition

    Grade C Mn P S Cu Ni Cr Mo V
    B 0.3 1.2 0.05 0.045 0.4 0.4 0.4 0.15 0.08

    ASTM A53 GR B Carbon Steel Pipe Mechanical Properties

    Element Tensile strength, min, psi (MPa) Yield strength, min, psi (MPa)
    GR.B 60,000 (415) 35,000 (240)

    Schedule Chart of ASTM A53 GR.B Seamless Pipes

    NB OD Size 40S 5S 10S S10 S20 S60 S40 S80 XS/80S S120 S100 S160 S140 XXS
    13.72 1/4 1.7 2.24 3.02
    17.15 3/8 1.7 2.31 3.2
    20 26.67 3/4 2.9 1.7 2.1 2.87 3.91 3.91 5.56 7.82
    25 33.4 1 3.4 1.7 2.8 3.38 4.55 4.55 6.35 9.09
    32 42.16 1 1/4 3.6 1.7 2.8 3.56 4.85 4.85 6.35 9.7
    40 48.26 1 1/2 3.7 1.7 2.8 3.68 5.08 5.08 7.14 10.2
    50 60.33 2 3.9 1.7 2.8 3.91 5.54 5.54 9.74 11.1
    65 73.03 2 1/2 5.2 2.1 3.1 5.16 7.01 7.01 9.53 14
    90 101.6 3 1/2 5.7 2.1 3.1 5.74 8.08 8.08
    100 114.3 4 6 2.1 3.1 6.02 8.56 8.56 11.1 13.5 17.1
    150 168.3 6 7.1 2.8 3.4 7.11 11 10.97 14.3 18.3 22
    300 323.9 12 9.5 4 4.6 6.4 14.3 10.3 17.5 12.7 25.4 21.4 33.3 28.6 25.4
    350 355.6 14 9.5 4 4.8 6.4 7.9 15.1 11.1 19.1 12.7 27.8 23.8 35.7 31.8
    450 457.2 18 9.5 4.2 4.8 6.4 7.9 19.1 14.3 23.8 12.7 34.9 29.4 45.2 39.7
    500 508 20 9.5 4.8 5.5 6.4 9.5 20.6 15.1 26.2 12.7 38.1 32.5 50 44.5
    600 609.6 24 9.5 5.5 6.4 6.4 9.5 24.6 17.5 31 12.7 46 38.9 59.5 52.4
    650 660.4 26 9.5 7.9 13 12.7
    750 762 30 9.5 6.4 7.9 7.9 13 12.7
    800 812.8 32 9.5 7.9 13 17.5 12.7
    900 914.4 36 9.5 7.9 13 19.1 12.7

    ASTM A53 GR.B Seamless Pipes Pressure Rating

    Carbon Steel Pipes – Working Pressure
    Nominal Size
    (inches)     		Pipe Outside Diameter
    OD
    (inches)     		Schedule Number or weight Wall Thickness
    – t –
    (inches)     		Inside Diameter
    – d –
    (inches)     		Working Pressure ASTM A53 B to 400°F
    Manu-
    facturing Process    		 Joint Type psig
    1/4 0.540 40ST 0.088 0.364 CW1) T 188
    80XS 0.119 0.302 CW T 871
    3/8 0.675 40ST 0.091 0.493 CW T 203
    80XS 0.126 0.423 CW T 820
    1/2 0.840 40ST 0.109 0.622 CW T 214
    80XS 0.147 0.546 CW T 753
    3/4 1.050 40ST 0.113 0.824 CW T 217
    80XS 0.154 0.742 CW T 681
    1 1.315 40ST 0.133 1.049 CW T 226
    80XS 0.179 0.957 CW T 642
    1 1/4 1.660 40ST 0.140 1.380 CW T 229
    80XS 0.191 1.278 CW T 594
    1 1/2 1.900 40ST 0.145 1.610 CW T 231
    80XS 0.200 1.500 CW T 576
    2 2.375 40ST 0.154 2.067 CW T 230
    80XS 0.218 1.939 CW T 551
    2 1/2 2.875 40ST 0.203 2.469 CW W 533
    80XS 0.276 2.323 CW W 835
    3 3.500 40ST 0.216 3.068 CW W 482
    80XS 0.300 2.900 CW W 767
    4 4.500 40ST 0.237 4.026 CW W 430
    80XS 0.337 3.826 CW W 695
    6 6.625 40ST 0.280 6.065 ERW2) W 696
    80XS 0.432 5.761 ERW W 1209
    8 8.625 30 0.277 8.071 ERW W 526
    40ST 0.322 7.981 ERW W 643
    80XS 0.500 7.625 ERW W 1106
    10 10.75 30 0.307 10.136 ERW W 485
    40ST 0.365 10.020 ERW W 606
    XS 0.500 9.750 ERW W 887
    80 0.593 9.564 ERW W 1081
    12 12.75 30 0.330 12.090 ERW W 449
    ST 0.375 12.000 ERW W 528
    40 0.406 11.938 ERW W 583
    XS 0.500 11.750 ERW W 748
    80 0.687 11.376 ERW W 1076
    14 14.00 30ST 0.375 13.250 ERW W 481
    40 0.437 13.126 ERW W 580
    XS 0.500 13.000 ERW W 681
    80 0.750 12.500 ERW W 1081
    16 16.00 30ST 0.375 15.250 ERW W 421
    40XS 0.500 15.000 ERW W 596
    18 18.00 ST 0.375 17.250 ERW W 374
    30 0.437 17.126 ERW W 451
    XS 0.500 17.000 ERW W 530
    40 0.562 16.876 ERW W 607
    20 20.00 20ST 0.375 19.250 ERW W 337
    30XS 0.500 19.000 ERW W 477
    40 0.593 18.814 ERW W 581

    ASTM A53 GR.B Seamless Pipes Size Chart

    NB Size OD 40S 5S 10S S10 S20 S40 S60 XS/80S S80 S100 S120 S140 S160 XXS
    mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
    1/8” 10.29 1.2 1.73 2.41
    1/4” 13.72 1.7 2.24 3.02
    3/8” 17.15 1.7 2.31 3.2
    15 1/2” 21.34 2.8 1.7 2.1 2.77 3.73 3.73 4.78 7.47
    20 3/4” 26.67 2.9 1.7 2.1 2.87 3.91 3.91 5.56 7.82
    25 1” 33.4 3.4 1.7 2.8 3.38 4.55 4.55 6.35 9.09
    32 1 1/4” 42.16 3.6 1.7 2.8 3.56 4.85 4.85 6.35 9.7
    40 1 1/2” 48.26 3.7 1.7 2.8 3.68 5.08 5.08 7.14 10.2
    50 2” 60.33 3.9 1.7 2.8 3.91 5.54 5.54 9.74 11.1
    65 2 1/2” 73.03 5.2 2.1 3.1 5.16 7.01 7.01 9.53 14
    80 3” 88.9 5.5 2.1 3.1 5.49 7.62 7.62 11.1 15.2
    90 3 1/2” 101.6 5.7 2.1 3.1 5.74 8.08 8.08
    100 4” 114.3 6 2.1 3.1 6.02 8.56 8.56 11.1 13.5 17.1
    125 5” 141.3 6.6 2.8 3.4 6.55 9.53 9.53 12.7 15.9 19.1
    150 6” 168.3 7.1 2.8 3.4 7.11 10.97 11 14.3 18.3 22
    200 8” 219.1 8.2 2.8 3.8 6.4 8.18 10.3 12.7 12.7 15.1 19.3 20.6 23 22.2
    250 10” 273.1 9.3 3.4 4.2 6.4 9.27 12.7 12.7 15.1 19.3 21.4 25.4 28.6 25.4
    300 12” 323.9 9.5 4 4.6 6.4 10.3 14.3 12.7 17.5 21.4 25.4 28.6 33.3 25.4
    350 14” 355.6 9.5 4 4.8 6.4 7.9 11.1 15.1 12.7 19.1 23.8 27.8 31.8 35.7
    400 16” 406.4 9.5 4.2 4.8 6.4 7.9 12.7 16.7 12.7 21.4 26.2 31 36.5 40.5
    450 18” 457.2 9.5 4.2 4.8 6.4 7.9 14.3 19.1 12.7 23.8 29.4 34.9 39.7 45.2
    500 20” 508 9.5 4.8 5.5 6.4 9.5 15.1 20.6 12.7 26.2 32.5 38.1 44.5 50
    550 22” 558.8 9.5 4.8 5.5 6.4 9.5 22.2 12.7 28.6 34.9 41.3 47.6 54
    600 24” 609.6 9.5 5.5 6.4 6.4 9.5 17.5 24.6 12.7 31 38.9 46 52.4 59.5
    650 26” 660.4 9.5 7.9 13 12.7
    700 28” 711.2 9.5 7.9 13 12.7
    750 30” 762 9.5 6.4 7.9 7.9 13 12.7
    800 32” 812.8 9.5 7.9 13 17.5 12.7
    850 34” 863.6 9.5 7.9 13 17.5 12.7
    900 36” 914.4 9.5 7.9 13 19.1 12.7

    Price List of Carbon Steel A53 GR.B Pipes

    Description Per Unit (INR)
    CARBON STEEL SEAMLESS PIPES ASTM A53 GRADE B SIZE : 3NB X SCH40 X 5.81 MTR LONG (10 NOS) 1,003
    CARBON STEEL SEAMLESS PIPES SCH40, SRL, BE, BLACK API 5L, GRADE B, ASTM A53/A53SIZE:2 362
    SEAMLESS CARBON STEEL PIPES SCH40, SRL, BE, BLACK API 5L, GRADE B, ASTM A53/A53SIZE:2 1/2 576
    CARBON STEEL SEAMLESS PIPES SCH40, SRL, BE, BLACK API 5L, GRADE B, ASTM A53/A53SIZE:4 1,074
    SEAMLESS CARBON STEEL PIPES SCH40, SRL, BE, BLACK API 5L, GRADE B, ASTM A53/A53SIZE:3 757
    CARBON STEEL SEAMLESS PIPES GRADE ASTM A53 GR. B, 16 NB SCH 80 - 03 PC 16,251
    CARBON STEEL SMLS PIPES GRADE ASTM A53 GR. B, 18 NB SCH 100 - 01 PC 26,531

    Weight Chart of Carbon Steel A53 GR.B Pipes

    NPS Designator DN Designator Outside Diameter Inside Diameter Wall Thickness Nominal Weight (Mass) per unit Length
    (Inches) (Inches) (Inches) Plain End (lb/ft) Threads & Couplings (lb/ft)
    1/8 inches 6 0.405 0.269 0.068 0.24 0.25
    1/4 inches 8 0.54 0.364 0.088 0.43 0.43
    3/8 inches 10 0.675 0.493 0.091 0.57 0.57
    1/2 inches 15 0.84 0.622 0.109 0.85 0.86
    3/4 inches 20 1.05 0.824 0.113 1.13 1.14
    1 inches 25 1.315 1.049 0.133 1.68 1.69
    1-1/4 inches 32 1.66 1.38 0.14 2.27 2.28
    1-1/2 inches 40 1.9 1.61 0.145 2.72 2.74
    2 inches 50 2.375 2.067 0.154 3.66 3.68
    2-1/2 inches 65 2.875 2.469 0.203 5.8 5.85
    3 inches 80 3.5 3.068 0.216 7.58 7.68
    3-1/2 inches 90 4 3.548 0.226 9.12 9.27
    4 inches 100 4.5 4.026 0.237 10.8 10.92
    5 inches 125 5.563 5.047 0.258 14.63 14.9
    6 inches 150 6.625 6.065 0.28 18.99 19.34
    8 inches 200 8.625 7.981 0.322 28.58 29.35
    10 inches 250 10.75 10.02 0.365 40.52 41.49
    12 inches 300 12.75 12 0.375 49.61 51.28

    Carbon Steel A53 GR.B Pipes Tolerance

    TYPE  OD  Thickness
     SEAMLESS  1/4 inch ~ 36 inch  1.25mm ~ 50mm
    ERW   1/8 inch ~ 24 inch  Max 26.5mm
    LSAW   219mm ~ 3120mm  3mm ~ 25mm
    SSAW  16 inch ~ 64 inch  3mm ~ 25mm

    Types of Carbon Steel A53 GR.B Pipes

    Carbon Steel Grade B ERW Pipes

    Carbon Steel GR B Seamless Pipe

    ASTM A53 Carbon Steel Welded Pipe

    Carbon Steel GR.B Pipes

    Carbon Steel A53 Gr. B Seamless Pipes

    ASTM A53 Gr. B Carbon Steel Pipes

    Carbon Steel GR.B ERW Pipes

    ASTM A53 Carbon Steel Black Pipes

    Carbon Steel Gr B Zinc-Coated Pipe

    A53 GR B Carbon Steel Welded Pipe

    ASTM A53 Gr. B Pipe Manufactrer

    ASME SA 53 Carbon Steel Gr B Pipes

    ASTM A53 CS Seamless Pipe Manufactrer

    Carbon A53 Gr B Hot-Dipped Pipe

    ASTM A53 Gr B Welded Pipe

    ASTM A53 Carbon Steel GR.B ERW Pipes

    CS A53 GR B Seamless Pipes

    ASTM A53 GR B Pipe Supplier


    Carbon Steel ASTM A53 GR B Pipes Applications

    • Petrochemicals
    • Gas Processing
    • Chemical Equipment
    • Off-Shore Oil Drilling Companies
    • Pharmaceutical Equipment
    • Pulp & Paper Industry
    • Sea Water Equipment
    • Power Generation
