Dish Ends Manufacturer in Ireland

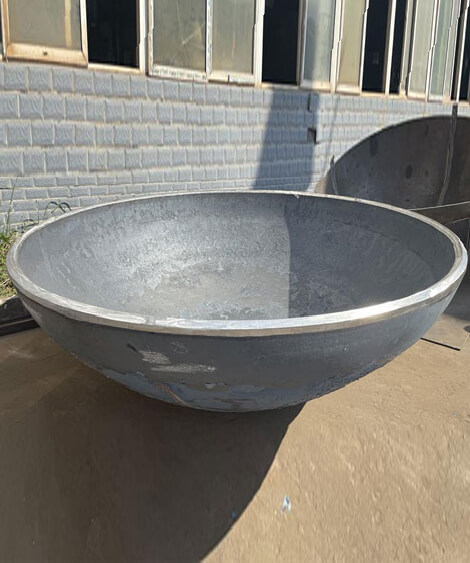

Astec Tube is a reliable dish end supplier in Ireland that offers high-quality solutions to industries that need high-performance vessel parts. A dish end is a concave metal part that is utilized to seal the ends of pressure vessels, storage tanks and pipelines. These dish ends are available in different types like hastelloy buttweld dished end and monel dish end. It delivers pressure resistance and structural integrity, providing safety and reliability across different operations. Our dishing process guarantees uniform quality and accuracy, customized to suit customer-specific demands.

Our dish ends are designed with superior mechanical strength and durability. Every product goes through a highly accurate dishing process so that it has a perfect finish and structural integrity. These products have high resistance to internal pressure, temperature variations and corrosion. The dished and flanged ends are weldable and are suitable for multiple fabrication methods. Whether for low or high-pressure use, our dish ends hold their shape and integrity even in harsh operating conditions. The standard dished ends have excellent impact strength and tensile characteristics which qualify them as a good option for long-term industrial applications.

Dished End Manufacturers, Stainless Steel Dished Ends, DIN 28011 Torispherical Heads, Pressure Vessel Heads, Head of Pressure Vessel, Ellipsoidal Dish End, Ellipsoidal Dish End Dimensions, Pressure tank ends Ireland, Dished End Manufacturer Ireland, Pressure Vessel Components, Ireland dish end supplier

Table Of Content

What is Dish End

Dished Ends Spec Chart in Ireland

Dimension of Pressure Vessel Dished Ends in Ireland

Price List of Dished Ends in Ireland

Various Types of Dished Ends in Ireland

Tank Dished Ends Applications in Ireland

Dish ends find extensive application in numerous industries such as oil & gas, chemical processing, pharmaceuticals, food & beverage, and water treatment. Pressure tank dished ends and pipe caps are important for ensuring system integrity by providing pressure-resistant and leak-proof sealing.

Our hemispherical dish end and other variants are designed as per global industrial standards to meet the demands of high-pressure environments. Every unit is produced under stringent quality control to ensure that the dished ends are of a high standard and can meet stringent industry standards and regulatory requirements. We offer general dished ends in a variety of sizes, thicknesses, and materials. We provide solutions in all standard industrial configurations. Our range supports diverse applications, from small-scale equipment to large industrial vessels, ensuring the right fit for every requirement.

Torispherical Head Dimensions, Hemispherical Dish Ends Ireland, Custom Dished Ends Ireland, Pressure Vessel Components Ireland, Industrial Dish Ends Ireland, Carbon Steel Dish Ends Ireland, Pipeline End Caps Ireland, Torispherical Heads, Pressure Vessel Fabrication Ireland, Dished Head Supplier Ireland

We cater to custom specifications and are capable of delivering dish ends in compliance with international standards. Get in touch with our team for expert assistance, quotes, and custom solutions. Our team is ready to help you select the right dished ends for pressure tanks and pipe caps tailored to your needs. Contact us today to discover how we can be your trusted partner in high-performance dish ends.

Specifications	End Cap
End Cap Pipe Fittings size	Seamless Butt Weld Fittings: 1/2″ – 10″ Welded Butt Weld Fittings: 1/2″ – 48″
End Cap Thickness	SCH 140, SCH 160, XS, SCH20, SCH30, STD SCH40, SCH10, SCH120, SCH60, SCH80, XXS, SCH 100 available with NACE MR 01-75
End Cap Types	ERW / Seamless / Welded / Fabricated
Bending Radius	R=10D, 6D, 2D, 1D, 8D, 5D, 3D or Custom Pipe Fittings
End CapType	DN15-DN1200
Connection	Welding
End Cap Dimensions	ASME/ANSI B16.9, MSS-SP-43, BS1560, ASME B16.28, BS4504, BS4504, BS10
Size Range	Manufacturer of DIN 28011 Torispherical Heads in ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
End Cap Fittings	Angle : 45 deg, 30deg, 180 deg, 22.5 deg, 90 deg, 6D, 1.5D, 2.0D, 5D, 1.0D, 4D, 2.5D, 3D, 7D-40D. Standard: ASME B16.25, ASME B16.9, ASME B16.28, MSS SP-75 JISB2312 JISB2313 JISB2311 DIN2605, GB, BS, ISO

Code FOSTD – FOXS	Nominal Diameter		Wall Th. S mm		Height H mm	Theoretical Weight kg
Code FOSTD – FOXS	Poll.	D mm	STD	XS	Height H mm	STD	XS
5	1/2	21.34	2.77	3.73	25.4	0.03	–
7	3/4	26.67	2.87	3.91	25.4	0.06	0.08
10	1	33.40	3.38	4.55	38.1	0.10	0.14
12	1” 1/4	42.16	3.56	4.85	38.1	0.14	0.18
15	1” 1/2	48.26	3.68	5.08	38.1	0.16	0.23
20	2	60.32	3.91	5.54	38.1	0.27	0.32
25	2” 1/2	73.02	5.16	7.01	38.1	0.41	0.45
30	3	88.90	5.49	7.62	50.8	0.65	0.82
40	4	114.30	6.02	8.56	63.5	1.15	1.54
50	5	141.30	6.55	9.52	76.2	1.90	2.59
60	6	168.27	7.11	10.97	88.9	2.92	4.10
80	8	219.07	8.18	12.70	101.6	5.07	7.3
100	10	273	9.27	12.70	127	9.1	12.0
120	12	323.9	9.52	12.70	152	13.6	17.0
140	14	355.6	9.52	12.70	165	14.42	19.8
160	16	406.4	9.52	12.70	178	18.86	25.89
180	18	457.2	9.52	12.70	203	27.65	36.52
200	20	508	9.52	12.70	229	35.60	46.98
240	24	609.6	9.52	12.70	267	46	64.60
Buy directly from Stainless Steel Dished Ends Manufacturers at best price.

Products	Price
ISO3419 Seamless Butt Weld Dished Ends	$21.7 Per Piece
Stainless Steel Elliptical Head Dished Heads End	$15 Per Piece
Dished 1000mm 14mm Tank Ends	$25 Per Piece
Carbon Steel Elliptical Head Dished Ends	$100 Per Piece
Stainless Steel Large dished end for Pressure Vessel 6050mm*T50mm	$3.2 Per Piece
Heavy Dished Ends for Sugar Plants	$20 Per Piece
