| Grade | Description |
|---|---|
| Grade 1 | Commercially Pure Titanium |
| Grade 2 | Commercially Pure Titanium (CP Grade 2) |
| Grade 3 | Commercially Pure Titanium (CP Grade 3) |
| Grade 5 | Titanium 6Al-4V |

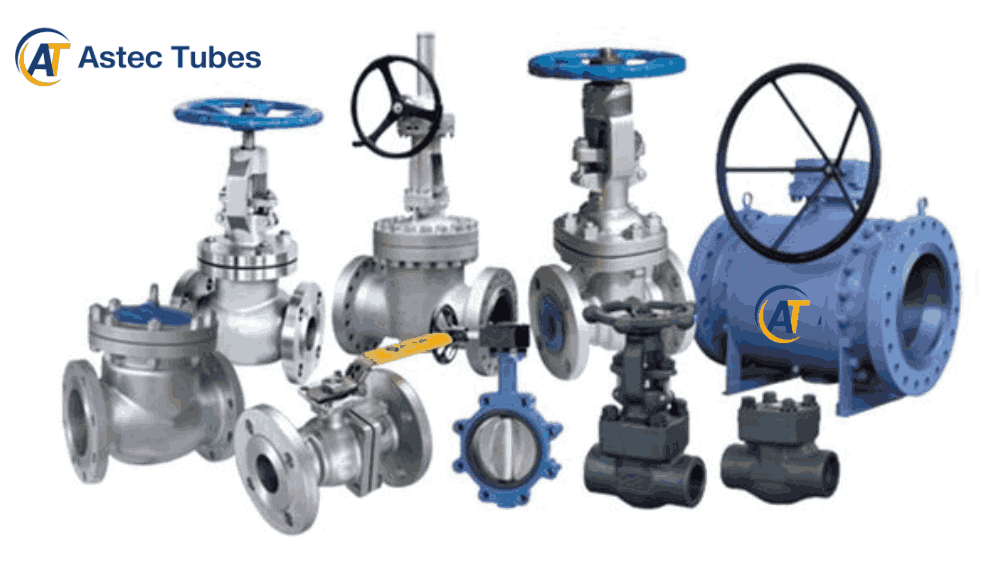

Introduction to Titanium Valves
Due to their remarkable properties, titanium valves are critical components across various industries. They are known for their exceptional strength, corrosion resistance, and lightweight nature, making them invaluable in demanding environments.
Understanding Titanium Grades
Grade 1: Commercially Pure Titanium
Grade 1 titanium, also known as commercially pure titanium, is the softest and most ductile titanium alloy. It boasts excellent corrosion resistance in highly oxidizing environments, making it suitable for applications where weight is a concern but high strength is not required.
Grade 2: Commercially Pure Titanium (CP Grade 2)
CP Grade 2 titanium is the most commonly used titanium alloy. It balances strength, ductility, and weldability, making it ideal for various applications. CP Grade 2 titanium exhibits excellent corrosion resistance and is often utilized in industries such as aerospace, chemical processing, and medical devices.
Grade 3: Commercially Pure Titanium (CP Grade 3)
Similar to Grade 2, CP Grade 3 titanium offers excellent corrosion resistance. However, it contains slightly higher oxygen content, increasing strength compared to Grade 2. CP Grade 3 titanium is commonly used in applications requiring additional strength without sacrificing corrosion resistance.
Grade 5: Titanium 6Al-4V
Titanium 6Al-4V, or Grade 5 titanium, is an alloy composed of 6% aluminium and 4% vanadium. This alloy exhibits exceptional strength, toughness, and heat resistance. Grade 5 titanium finds extensive applications in aerospace components, racing engines, and marine equipment where high performance is essential.
Titanium Valves and Their Applications
Titanium valves find widespread applications across various industries due to their exceptional properties. These valves are utilized in:
- Aircraft Engines: Titanium valves contribute to the efficient operation of aircraft engines, where reliability and performance are paramount.
- Chemical Processing: Titanium valves are crucial in chemical processing plants, offering corrosion resistance in harsh chemical environments.
- Oil and Gas: In the oil and gas industry, titanium valves withstand corrosive fluids and high-pressure conditions, ensuring reliable operation.
- Marine Equipment: Titanium valves are used in marine applications due to their resistance to seawater corrosion and lightweight design.
- Racing Engines: Titanium valves enhance performance in racing engines by withstanding high temperatures and maintaining engine efficiency.
Factors Affecting Titanium Valve Grades
The selection of a titanium valve grade depends on various factors, including:
Corrosion Resistance
Different grades of titanium offer varying levels of corrosion resistance. Grade 1 titanium provides excellent corrosion resistance in highly oxidizing environments, while Grade 5 titanium offers superior resistance to corrosion in both acidic and alkaline environments.
Strength and Durability
Titanium alloys exhibit different strength characteristics based on their composition. Grade 5 titanium, with its aluminium and vanadium content, offers superior strength and durability compared to commercially pure titanium.
Temperature Resistance
Certain applications require titanium valves to withstand high temperatures without deformation or degradation. Grade 5 titanium, known for its high-temperature resistance, is often preferred in such applications.
What Grade is a Titanium Valve?
The grade of a titanium valve depends on the application’s specific requirements. For instance:
- Grade 1: Suitable for low-stress applications where corrosion resistance is paramount.
- Grade 2: Ideal for general-purpose applications requiring a balance of strength and corrosion resistance.
- Grade 5 is preferred for high-performance applications with critical strength, durability, and temperature resistance.
Selecting the Right Titanium Valve Grade
When selecting a titanium valve grade, factors such as operating conditions, fluid compatibility, pressure requirements, and budget constraints must be considered. Consulting with a qualified engineer or valve specialist can help ensure the optimal selection for your application.
Benefits of Titanium Valves
Titanium valves offer a multitude of benefits, including:
- Exceptional Corrosion Resistance: Titanium valves exhibit excellent resistance to corrosion, even in harsh environments.
- High Strength-to-Weight Ratio: Titanium valves offer high strength while being lightweight, making them ideal for weight-sensitive applications.
- Superior Temperature Resistance: Certain grades of titanium valves can withstand high temperatures without deformation or degradation.
- Long-Term Durability: Titanium valves have a long service life due to their corrosion, wear, and fatigue resistance.
- Lightweight Design: Titanium valves contribute to overall weight reduction in applications such as the aerospace and automotive industries.
Limitations of Titanium Valves
While titanium valves offer numerous advantages, they also have some limitations:
- Higher Cost: Titanium valves are more expensive than valves made from other materials such as steel or brass.
- Limited Availability: Certain grades of titanium valves may have limited availability, especially in large sizes or specialized configurations.
- Specialized Machining: Machining titanium requires specialized equipment and expertise, which may increase production costs.
Conclusion
In conclusion, titanium valves are indispensable components in various industries, offering unparalleled performance and reliability in demanding applications. Understanding the different grades of titanium and their respective properties is crucial for selecting the right valve for specific requirements. Whether it’s aerospace, chemical processing, or racing engines, titanium valves continue to revolutionize industries with their exceptional properties and versatility.
